Vertical rails
Information
RAX-VS-Xxx-X1
Central vertical rail. Supply included:
Up to and including the height of 22U
Screw M5 x 12 ………….. 2 Pcs
Special nut M5 ………….. 2 Pcs
Up to and including the height of 23U
Screw M5 x 12 …………. 3 Pcs
Special nut M5 …………. 3 Pcs

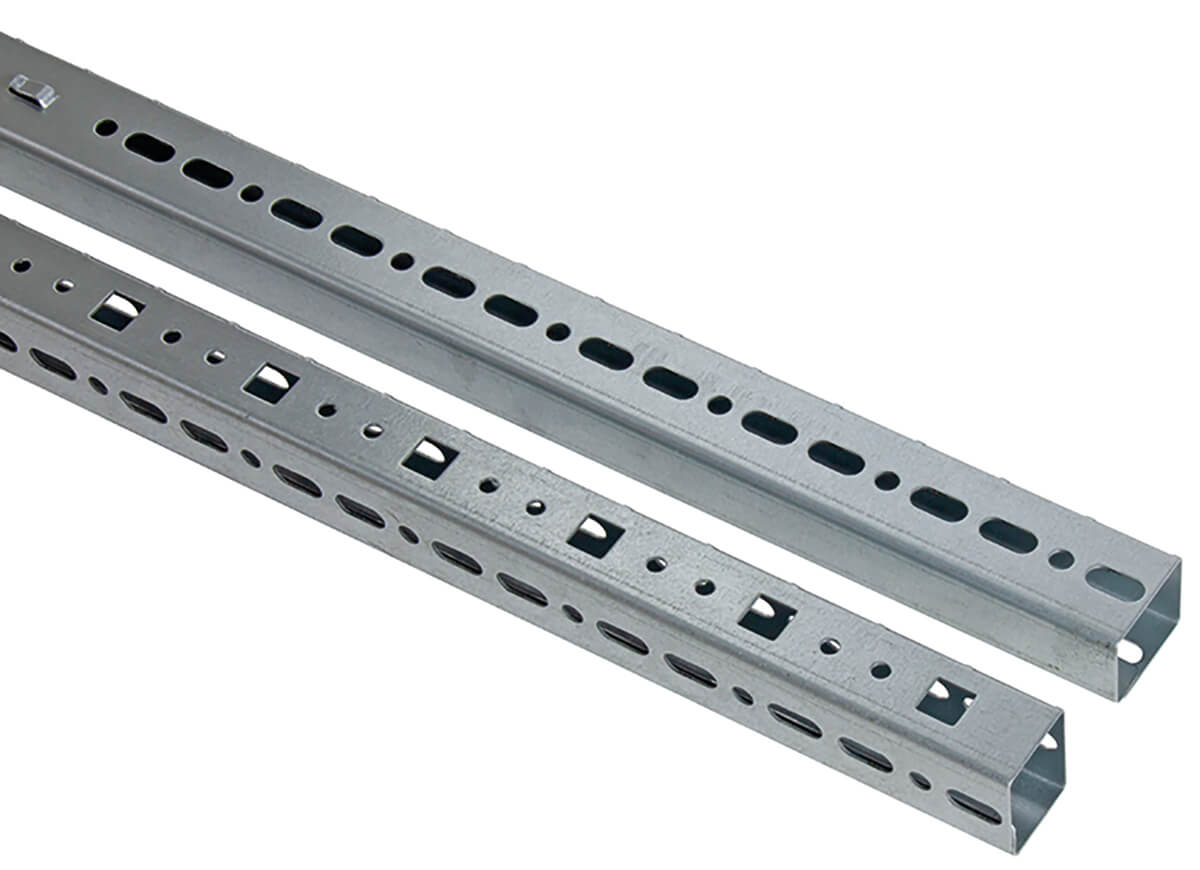

RAX-VL-Xxx-X1
Vertical rail. Unit marking is done by a laser marker.
RAX-VL-Dxx-X1
Reinforced vertical rail for RDA, RDE cabinets. It is also installed in RXA cabinets with a width of 800 mm. Unit marking is done by punching.

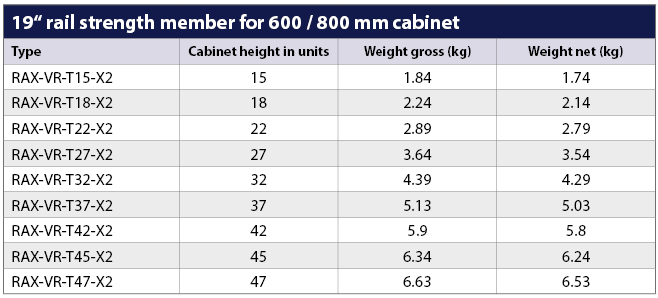

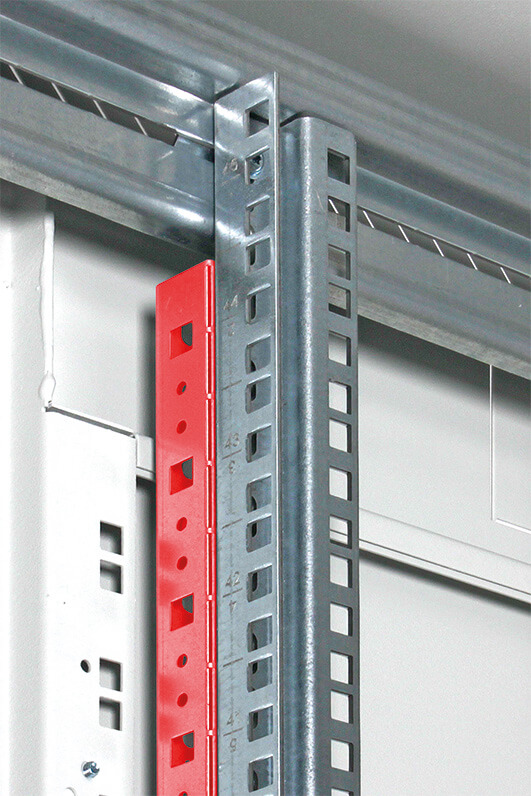

RAX-VR-Txx-X2
Additional profile that increase vertical rails stability (4 pcs). It increase cabinet max. load to 1500 kg.
